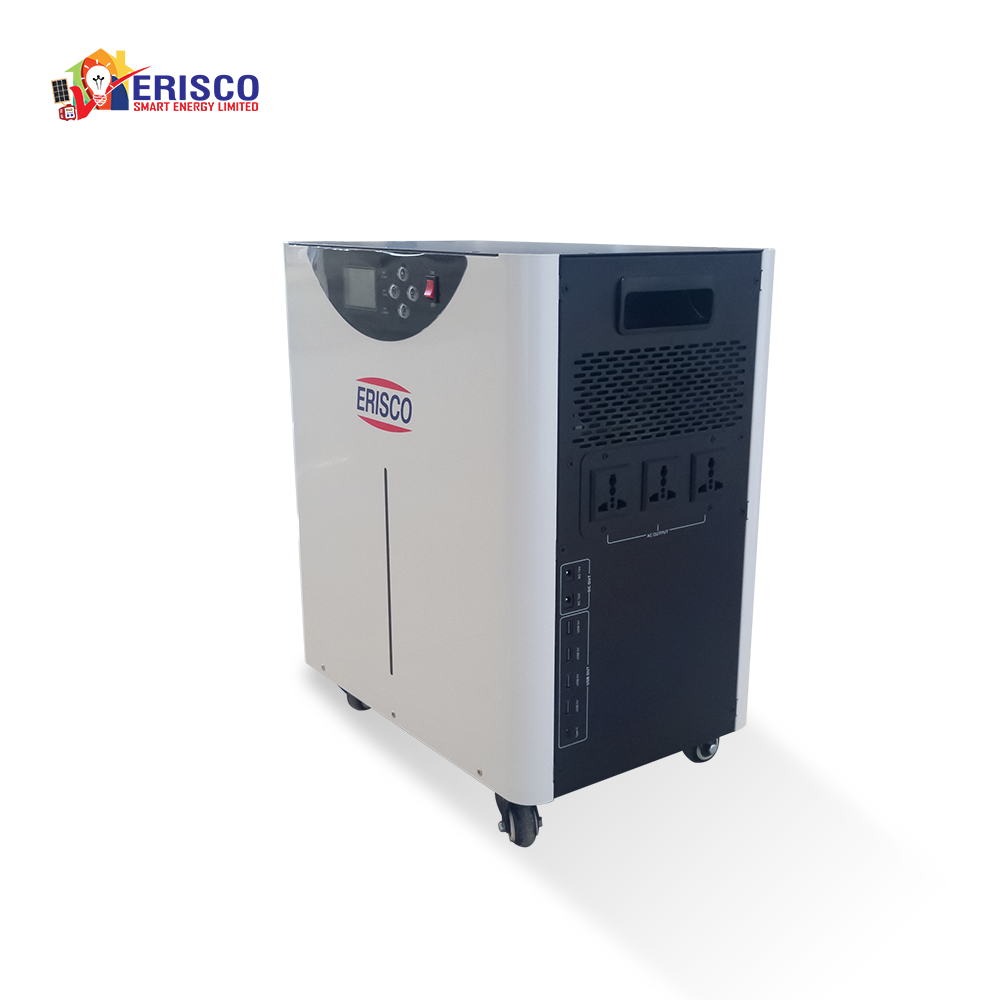

ERISCO SMART Energy all-in-one energy storage solution, support 1~3KW output for different load appliances. It’s based on the original cabinet design, stacked with solar energy storage lithium battery 960wh~6400wh, and built in battery protection system, fully retain the use of load power in applications of residential, school, commercial and public utility area.
Key Features
Product Overview
| Model | ERISCO SMART ENERGY – 1012, ERISCO SMART ENERGY – 1512, ERISCO SMART ENERGY – 2024, ERISCO SMART ENERGY – 3024 |
|---|
| Specification | ERISCO SMART ENERGY - 1012 | ERISCO SMART ENERGY - 1512 | ERISCO SMART ENERGY - 2024 | ERISCO SMART ENERGY - 3024 |
|---|---|---|---|---|
| INVERTER | ||||
| Rated Power | 1200W | 1500W | 2000W | 3000W |
| Surge Power | 2000W | 3000W | 4000W | 6000W |
| Output Voltage Waveform | Pure sine wave | Pure sine wave | Pure sine wave | Pure sine wave |
| Output Voltage Regulation | 220~240Vac (setting) | 220~240Vac (setting) | 220~240Vac (setting) | 220~240Vac (setting) |
| Output Frequency | 50Hz / 60Hz (±0.2Hz) | 50Hz / 60Hz (±0.2Hz) | 50Hz / 60Hz (±0.2Hz) | 50Hz / 60Hz (±0.2Hz) |
| Peak Efficiency | 90~93% | 90~93% | 90~93% | 90~93% |
| Nominal DC Input Voltage | 12Vdc (±0.3) | 12Vdc (±0.3) | 24Vdc (±0.3) | 24Vdc (±0.3) |
| Standby Consumption | < 25W | < 25W | < 25W | < 25W |
| PV INPUT | ||||
| Max Solar Power Input | 900W | 900W | 1800W | 1800W |
| PV Max Charging Current | 60A (±3A) | 60A (±3A) | 60A (±3A) | 60A (±3A) |
| Combined Charging Current | 70A (±4A) | 70A (±4A) | 80A (±4A) | 80A (±4A) |
| PV Max Efficiency | 98.0% max | 98.0% max | 98.0% max | 98.0% max |
| PV Open Circuit Voltage | 105VDC | 145VDC | 145VDC | 160VDC |
| MPPT Voltage Range | 15~105V | 15~130V | 30~120VDC | 30~128VDC |
| AC INPUT | ||||
| AC Input Voltage | 230Vac ±5% | 230Vac ±5% | 230Vac ±5% | 230Vac ±5% |
| Acceptable Input Voltage Range | 90–280VAC | 90–280VAC | 90–280VAC | 90–280VAC |
| Nominal Input Frequency | 50Hz / 60Hz (Auto detection) | 50Hz / 60Hz (Auto detection) | 50Hz / 60Hz (Auto detection) | 50Hz / 60Hz (Auto detection) |
| Transfer Time | 10ms typical (UPS, VDE); 20ms typical (APL) | 10ms typical (UPS, VDE); 20ms typical (APL) | 10ms typical (UPS, VDE); 20ms typical (APL) | 10ms typical (UPS, VDE); 20ms typical (APL) |
| AC CHARGE | ||||
| Charging Current @ Nominal Input Voltage | 10A (±4A) | 20A (±4A) | 20A (±4A) | 60A (±4A) |
| Charging Algorithm | 4-step (Li) | 4-step (Li) | 4-step (Li) | 4-step (Li) |
| OUTPUT | ||||
| AC Output | 230Vac (Socket *4pcs) | 230Vac (Socket *4pcs) | 230Vac (Socket *4pcs) | 230Vac (Socket *4pcs) |
| Type-C | DC output*1pcs | DC output*1pcs | DC output*1pcs | DC output*1pcs |
| USB (5V 2.4A) | DC output*4pcs | DC output*4pcs | DC output*4pcs | DC output*4pcs |
| USB (12V 1A) | DC output*2pcs | DC output*2pcs | DC output*2pcs | DC output*2pcs |
| LITHIUM BATTERY | ||||
| Energy | 1280Wh | 1280Wh | 2560Wh | 3072Wh |
| Nominal Voltage | 12.8V | 12.8V | 25.6V | 25.6V |
| Battery Capacity | 100Ah | 100Ah | 100Ah | 120Ah |
| Protection Board | 100A | 150A | 100A | 150A |
| Standard charging & discharge current | 50A | 50A | 50A | 50A |
| Operating Temperature (Charge) | 0~45°C | 0~45°C | 0~45°C | 0~45°C |
| Operating Temperature (Discharge) | -10~60°C | -10~60°C | -10~60°C | -10~60°C |
| DIMENSION | ||||
| Product Size (LxWxH mm) | 359×234×439 | 359×234×439 | 359×234×439 | 420×280×497 |
| Packing Size (LxWxH mm) | 460×335×560 | 460×335×560 | 460×335×560 | 522×702×521 |
| Net Weight (kg) | 21 | 25 | 30 | 36 |
| Gross Weight (kg) | 26 | 30 | 41 | 45 |
| Certifications | CE-EMC + LVD, IEC62109-1, IEC62368-1 | CE-EMC + LVD, IEC62109-1, IEC62368-1 | CE-EMC + LVD, IEC62109-1, IEC62368-1 | CE-EMC + LVD, IEC62109-1, IEC62368-1 |
