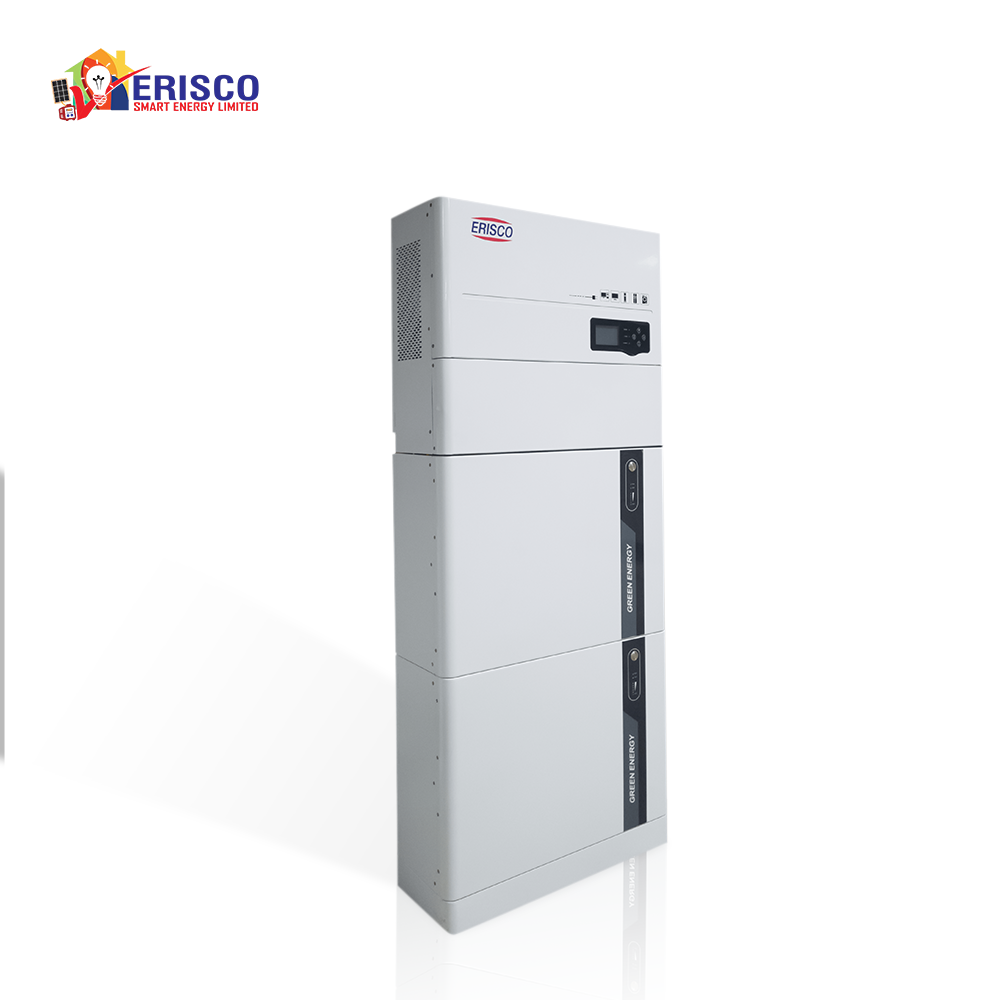

ERISCO SMART Energy Storage System – 75 ES (5KW-7.5KWH)

ERISCO SMART Energy Storage System – 75 ES (5KW-7.5KWH)

The ERISCO Smart energy storage system includes a 5 kW solar inverter and a lithium battery storage with optional energy of 7.5KWH. This one-stop service system makes it more convenient for you to manage your solar home battery storage.

Our flexible modular system can be designed based on your daily household energy consumption. This class-leading power station provides you with the power to run your daily household appliances, cabin workshops, or even provide power backup for your entire house for one or two days, depending on your demands. It is the perfect emergency energy solution for villas, apartments, hotels, and shopping centers.

Description

Description

  • Self-consumption and feed-back to the grid.
  • Multiple Working Mode: Energy storage mode, load priority mode, power-selling mode and a high-efficiency mode.
  • “Time of use” function: a maximum of 6-time segments can be set.
  • Inside BMS, support to be charged and discharged according to BMS requirements.
  • Support to connect with generator.
  • Automatic line-to-battery switch over.
  • Mobile APP monitoring.

Additional information

Model

ERISCO-05 ES, ERISCO-75 ES, ERISCO-10 ES

Product specifications

SpecificationERISCO-05 ESERISCO-75 ESERISCO-10 ES
Nominal Battery System Voltage48VDC48VDC
INVERTER OUTPUT
Rated Power5500VA / 5500W5500VA / 5500W5500VA / 5500W
WaveformPure Sine WavePure Sine WavePure Sine Wave
Nominal Output Voltage RMS230V230V230V
Output Voltage Regulation±10/-18%±10/-18%±10/-18%
Output Frequency50Hz / 60Hz ± 0.5Hz50Hz / 60Hz ± 0.5Hz50Hz / 60Hz ± 0.5Hz
Inverter Efficiency (Peak)>93%>93%>93%
Typical Transfer Time<10ms, 15ms max<10ms, 15ms max<10ms, 15ms max
AC INPUT
AC Input Voltage230VAC230VAC230VAC
Voltage Range170–280VAC(UPS) / 90–280VAC(APL) / 184–253VAC(VDE4105)170–280VAC(UPS) / 90–280VAC(APL) / 184–253VAC(VDE4105)170–280VAC(UPS) / 90–280VAC(APL) / 184–253VAC(VDE4105)
Frequency Range50Hz / 60Hz (Auto sensing)50Hz / 60Hz (Auto sensing)50Hz / 60Hz (Auto sensing)
BATTERY
Note: Below parameters based on one life of lithium battery modular
Battery51.2VDC 100AH 10240Wh51.2VDC 100AH 10240Wh51.2VDC 100AH 10240Wh
Low Battery Cutoff44.8DC44.8DC44.8DC
Low Battery Alarm46.8VDC46.8VDC46.8VDC
Low Battery Voltage Recover48.8VDC48.8VDC48.8VDC
High Voltage Alarm58.0VDC58.0VDC58.0VDC
High Battery Voltage Recover59.2VDC59.2VDC59.2VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage450VDC450VDC450VDC
PV Array MPPT Voltage Range150–430VDC150–430VDC150–430VDC
Maximum Solar Charge Current100A120A120A
Maximum AC Charge Current80A100A100A
Maximum Charge Current100A120A120A
Charger Voltage28.8VDC57.6VDC57.6VDC
Charging Current40A ± 2A60A ± 2A60A ± 2A
Overcharge Protection S.D.31VDC62VDC62VDC
OUTPUT
AC Output230VAC (Terminal)230VAC (Terminal)230VAC (Terminal)
BYPASS & PROTECTION
Nominal Input Frequency50Hz or 60Hz50Hz or 60Hz50Hz or 60Hz
Circuit BreakerFUSEFUSEFUSE
Bypass Breaker Rating32A40A40A
MECHANICAL SPECIFICATIONS
Machine Dimension (W*H*D) (mm)
(Inverter + Battery)		596×1345×220596×1345×220596×1345×220
Inverter Package Size (mm)687×300×680687×300×680687×300×680
Battery (single battery)660×285×490660×285×490660×285×490
Net Weight – Inverter (kg)202222
Net Weight – Battery (single battery) (kg)484848
Gross Weight – Inverter (kg)222424
Gross Weight – Battery (single battery) (kg)616161
Standard WarrantyInverter: 2 years; Lithium battery: 5 yearsInverter: 2 years; Lithium battery: 5 yearsInverter: 2 years; Lithium battery: 5 years
OTHER
Operating Temperature Range-10°C to 50°C-10°C to 50°C-10°C to 50°C
Audible Noise60dB MAX60dB MAX60dB MAX
DisplayLED + LCDLED + LCDLED + LCD
Standard Warranty2 years2 years2 years
CERTIFICATION & STANDARDSEN/IEC62109-1, EN IEC62109-2EN/IEC62109-1, EN IEC62109-2EN/IEC62109-1, EN IEC62109-2
