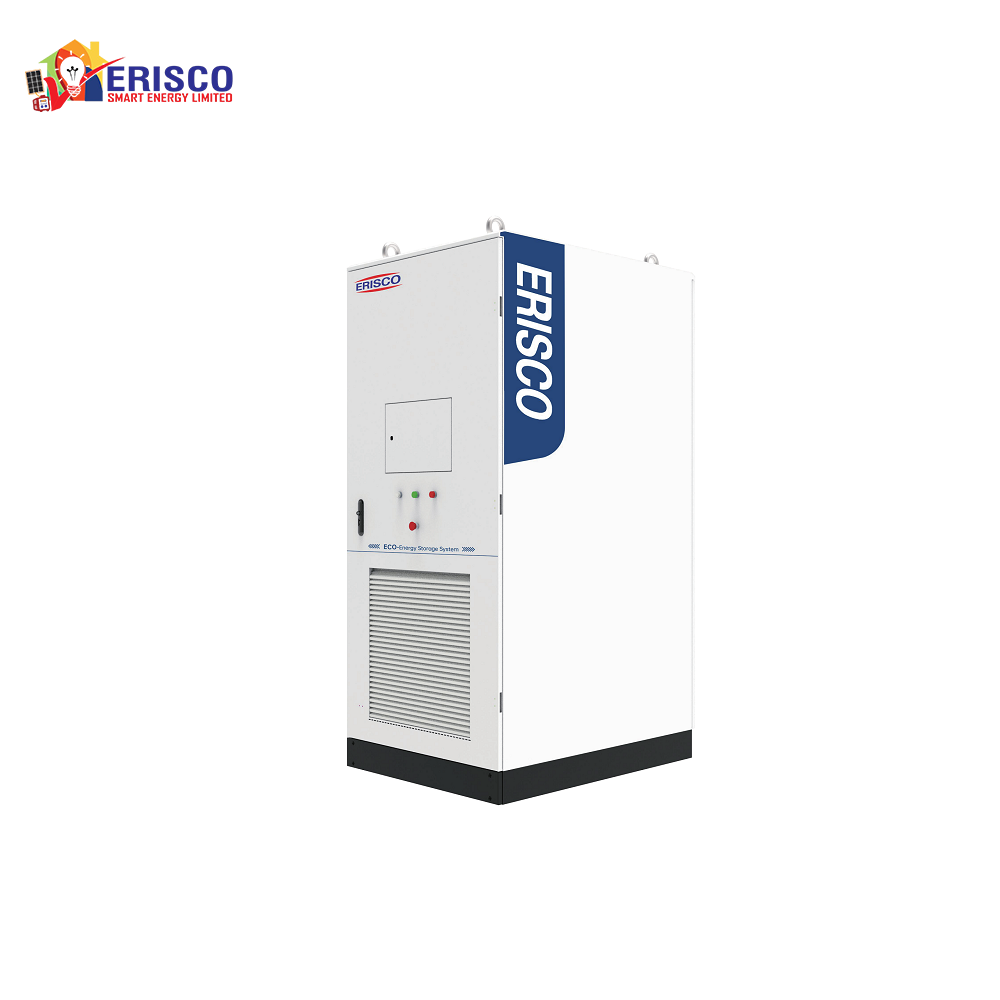

The liquid cooling energy storage integrated cabinet adopts an advanced single cabinet independent liquid cooling control scheme and thermal management strategy. The temperature difference of the entire cabinet battery cells is less than 3°C, further improving the system’s group consistency and extending the battery cell life. Modular design makes parallel solutions more flexible and has a higher energy density, significantly improving the economy, security, and deployment convenience of energy storage projects.
Product Features
| Project | Specification |
|---|---|
| DC BATTERY PARAMETERS | |
| Cell Type | LFP 280Ah |
| Battery PACK Configuration | 46.592kWh/1P52S |
| Battery System Configuration | 232.96kWh/1P260S |
| PACK Voltage Range | 728~936Vdc |
| System Rated Voltage | 832Vdc |
| AC SIDE PARAMETERS | |
| AC Rated Power | 100kW |
| Maximum AC Power | 110kW |
| AC Current Distortion Rate | ≤3% |
| DC Component | <0.5% Ipn |
| Rated Voltage of the Power Grid | 400Vac/3P+N+PE |
| Adjustable Range of Power Factor | -1~1 |
| Rated Grid Frequency | 50Hz/60Hz |
| SYSTEM PARAMETER | |
| Maximum System Efficiency | ≥90% |
| Charge Discharge Rate | 0.5P |
| Discharge Depth | 95%DOD(20±2℃) |
| Number of Cycles | ≥8000 second |
| Charging and Discharging Switching Time | <100ms |
| Communication Interface | Ethernet / RS485 |
| Protection Level | IP55 |
| Cooling Method | Active liquid cooling |
| Working Temperature | -25~55℃ |
| Relative Humidity | 5~95%RH, No condensation |
| Noise | ≤75dB |
| Altitude | ≤2000m (2000m The above reduction in usage) |
| Fire Protection System | PACK level prediction + single PACK protection + pipeline type perfluorohexane fire extinguishing |
| System size (width*depth*height) | 1050×1350×2400 mm |
| Weight | 2500Kg |
| Compliant Standards | GB/T 36276. GB/T 34120. GB/T 34131. UN38.3. IEC62619. UL1973. UL9540 . CE-EMC |
